Neopixels Over Bluetooth

This project is about using Adafruit's Bluefruit LE UART Friend breakout and the Bluefruit LE Connect phone app to control Neopixels over Bluetooth.

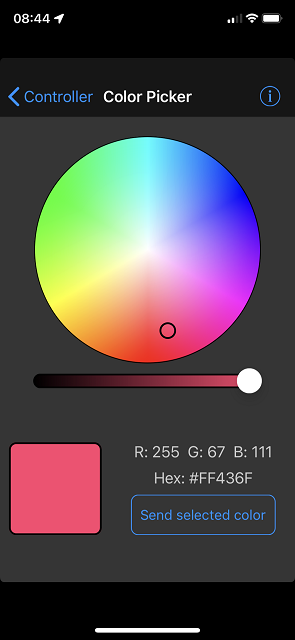

Here is a shot from the Color Picker module of the phone app.

Pico Circuit

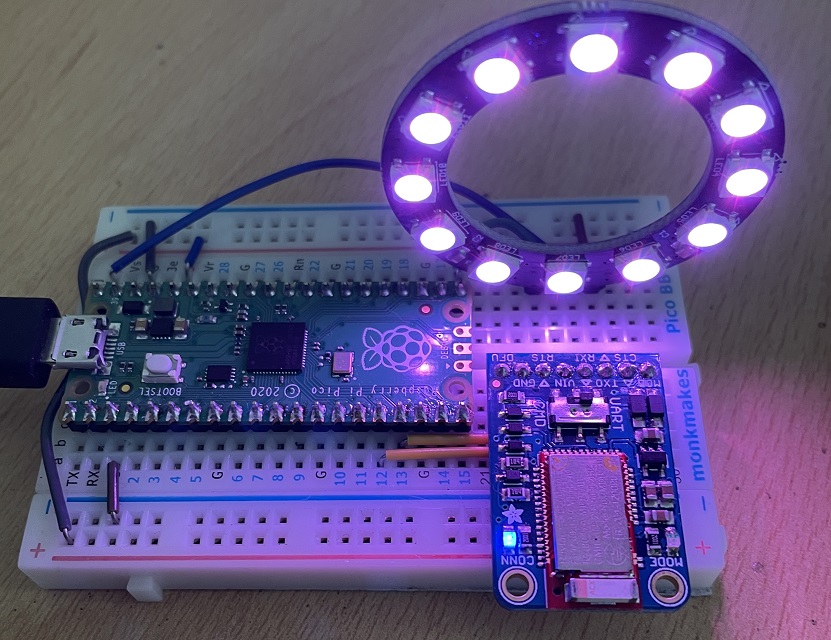

This is the circuit that I built. Neopixels are hard to photograph - the colours on the app and the Neopixels were a reasonably close match.

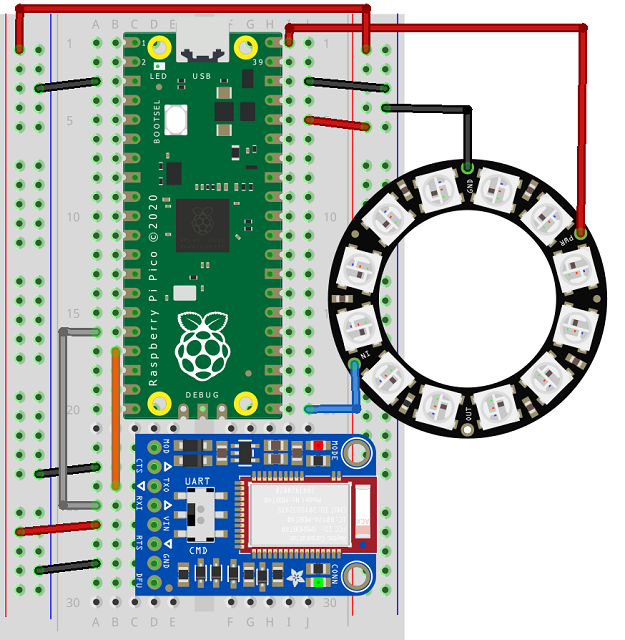

Pico Circuit

Pico Circuit

You need a library for this - get the latest .mpy one from here,

This code is not perfect. You could check that the data packets are intended as colour choices - the first byte received tells you that. You can also do the CRC check to validate the packet. This isn't bad though for being able to choose a colour without having to interact directly with the circuit.

from time import sleep
import board
import busio
import neopixel

pixel_pin = board.GP16
num_pixels = 12
ORDER = neopixel.GRB
pixels = neopixel.NeoPixel(pixel_pin, num_pixels, brightness=0.2, auto_write=False, pixel_order=ORDER)
pixels.fill((0,0,0))
pixels.show()

uart = busio.UART(tx=board.GP12, rx=board.GP13, baudrate=9600)

while True:
    data = uart.read(6)
    if data is not None:
        data = list(data)
        if len(data)==6:
            dr = data[2]
            dg = data[3]
            db = data[4]
            pixels.fill((dr, dg, db))
            pixels.show()
    sleep(0.1)
